SLIM GPS NAVIGATION

Created for Part 23 Class I/II aircraft (weighing less than 6,000 lbs) and experimental/amateur-built aircraft, GPS 175 provides a smart, affordable way to add next-generation navigation to your favorite airplane.

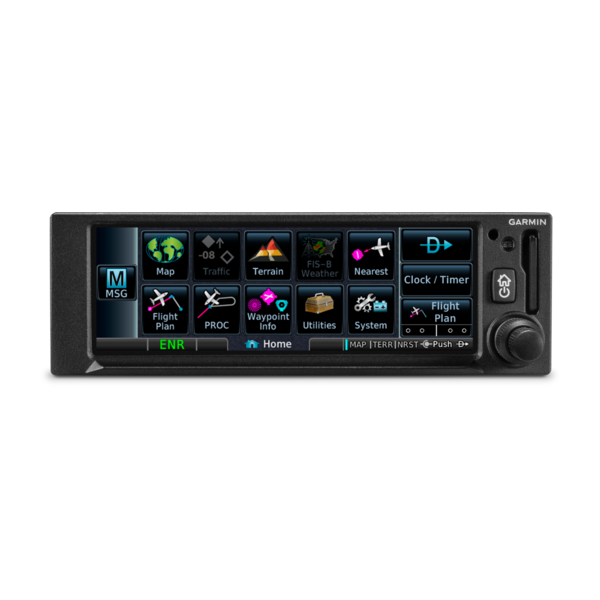

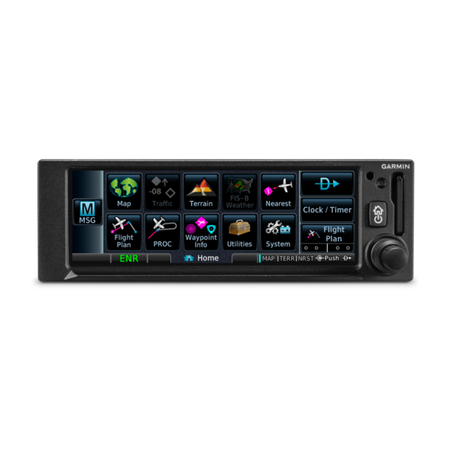

DO-IT-ALL TOUCHSCREEN

The intuitive touchscreen interface provides quick access to navigation, multifunction display features and more.

SIMPLE INSTALLATION

The GPS 175 navigator has the same 2-inch height as older navigation equipment and can allow you to keep the composite legacy CDIs already in your aircraft to minimize installation cost.

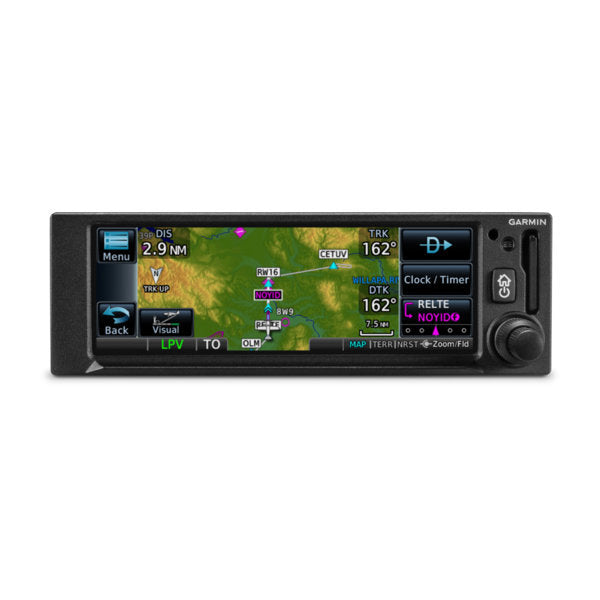

MULTIFUNCTION DISPLAY

The 4.8-inch display puts moving maps, terrain, traffic and weather ¹, SafeTaxi® airport diagrams and more at your fingertips.

EASY DATA ENTRY

Use the on-screen keyboard or traditional concentric knobs to enter waypoint identifiers, routings and more.

PINCH, SWIPE GESTURES

A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic¹ or terrain page.

FASTFIND FEATURE

As soon as you start typing, the GPS 175 navigator’s FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.

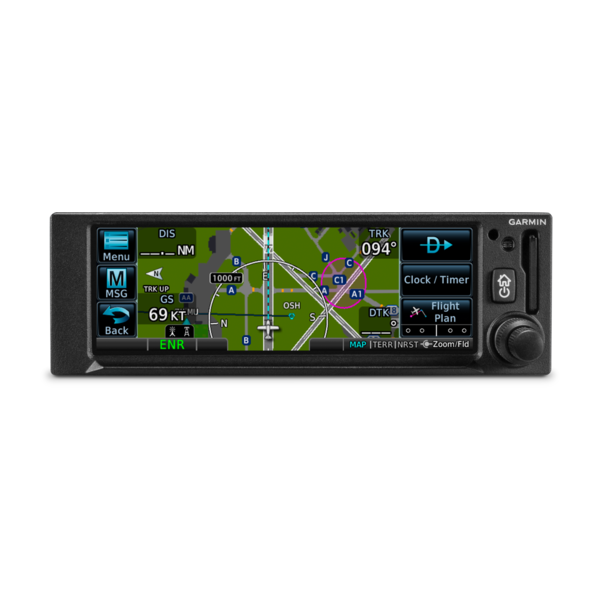

AIRWAYS, YOUR WAY

Victor airways can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.

“RUBBER BAND” REROUTES

This handy feature lets you grab a flight plan leg on the screen and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.

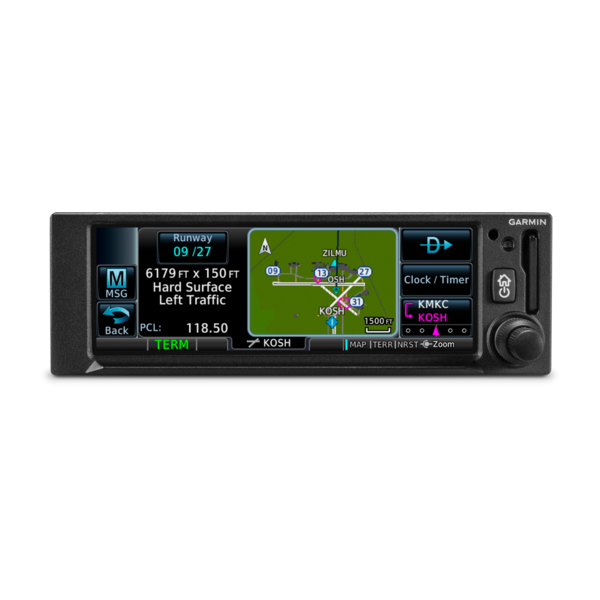

VIRTUAL MAP TOPOGRAPHY

By referencing built-in terrain, mapping and obstacles databases, GPS 175 shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.

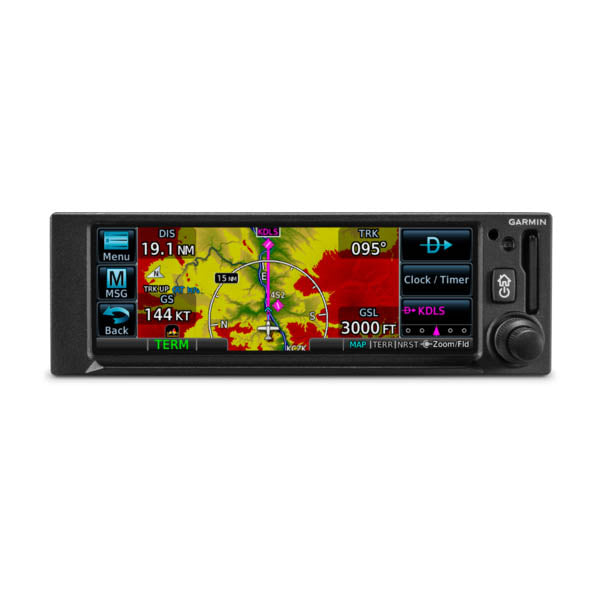

TERRAIN ALERTING

A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead.

DIRECT CONNECT

A Direct-to key on almost every page lets you quickly enter a direct course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.

Physical and Performance

• TSO applicability: C146e Class 3; C157b Category 1; C165a; C195b Category B1, B3, B5, B7
• Display size: 4.8" (122.5 mm) diagonal
• Display resolution: 732 pixels (W) x 240 pixels (H)
• Unit bezel height: 2.02" (51.0 mm)
• Unit bezel width: 6.25" (159.0 mm)
• Unit depth with connectors: 6.58" (167 mm) (measured from face of aircraft panel to rear of connector backshells)
• Unit weight: 1.3 lbs (0.6 kg)
• Maximum altitude: 35,000 ft
• Input voltage range: 9 VDC - 33 VDC
• Maximum display brightness: 260 fL
• Operating temperature range: -20° C to 55° C (-4° F to 131° F)
• Bluetooth version: 4.2
• Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
• LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
• Maximum velocity: 1,000 knots (above 60,000 feet)
• Position update Interval: 0.2 sec (5 Hz)

Garmin products have been designed for compatibility with a wide range of avionics. To confirm compatibility of Garmin equipment with your specific aircraft make/model and current avionics configuration, please consult your Authorized Garmin Dealer.

Connext® Compatibility

Enabled with BLUETOOTH® wireless technology.
